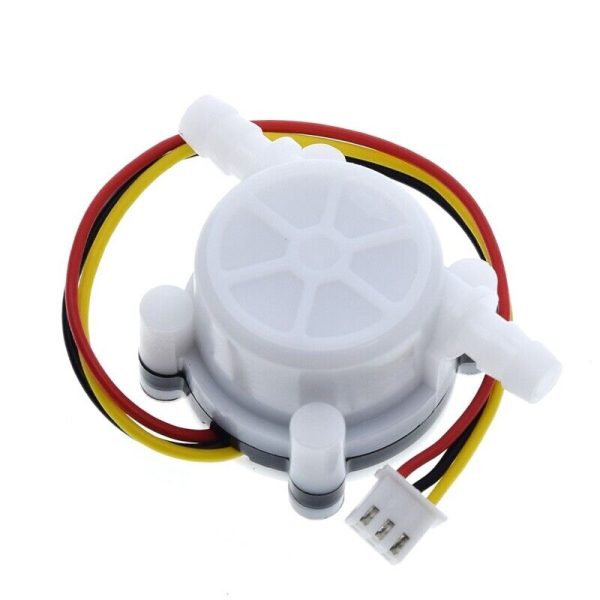

YF-S401 is a commonly used water flow sensor module, typically employed in applications like water metering, irrigation systems, and water flow detection. It is designed to measure the flow of water or any other liquid that does not contain solid particles.
The lowest rated working voltage: DC3.5 5V-12V
The maximum working current: 15 mA (DC 5V)
working voltage range: DC 5~18 V
load capacity: ≤ 10mA (DC 5V)
The use temperature range: ≤ 80 ° C
The use of humidity range: 35% ~ 90% RH (no frosting state)
Allowable pressure: water pressure below 1.75Mpa
Storage temperature: -25 ~ + 80 ° C
Storage humidity: 25% ~ 95% RH
