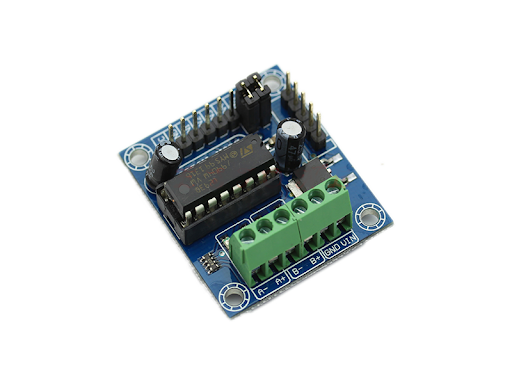

Mini L293D Motor Driver Module is a compact, 4-channel H-bridge driver designed to control the speed and direction of up to two DC motors or one stepper motor (4.5V–36V). Ideal for small robotics and Arduino projects, it features built-in diodes for back EMF protection and supports up to 600mA per channel.
Specifications
Driver IC: L293D
Motor Channels: Supports 2 DC motors or 1 stepper motor
Voltage Range: 4.5V to 36V DC
Output Current: 600mA per channel (continuous), 1.2A peak
Protection: Includes built-in diodes for back EMF protection
Control Method: Uses PWM for speed control and logic states for direction
Compatibility: Designed for microcontrollers like Arduino
Application
Robotics: Small robot cars
Automation: Motor-driven projects
Education: DIY electronics
