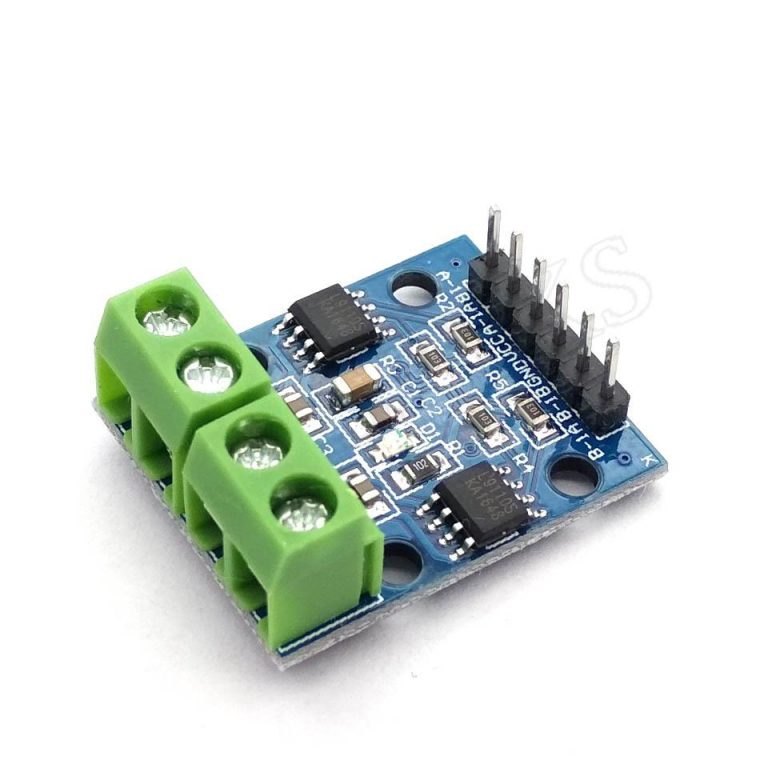

L9110S Stepper Motor Driver Module is a simple, low-cost DC motor and small stepper motor driver board based on the L9110S dual H-bridge motor driver IC. It’s widely used in hobby electronics and microcontroller projects (like Arduino, Raspberry Pi, ESP32, PIC, etc.) to control the direction and speed of small motors.
Specifications
Driver IC:L9110S Dual H-Bridge Motor Driver
Supply Voltage (VCC):2.5 V to 12 V DC** – wide operating range for small motor systems ([iFuture Technology)
Logic Input Level: TTL/CMOS compatible — works with **3.3 V and 5 V** microcontroller logic ([iFuture Technology][1])
Continuous Output Current:800 mA per channel** for each H-bridge ([iFuture Technology][1])
Peak Output Current:1.5 A per channel (short pulses)** (dependent on module variant/temperature)
Channels:2 independent H-bridges** (can drive two DC motors or one stepper)
Motor Types Supported:2 DC motors **OR** • One **4-wire, 2-phase stepper motor
Control:Digital inputs (HIGH/LOW), PWM supported for speed control
Operating Temperature:0 °C to ~80 °C (varies by board manufacturer)
