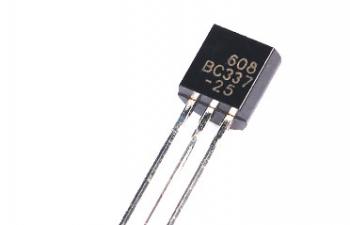

BC337 is a NPN transistor with good characteristics, this transistor can be used in audio frequency driver stages, low power audio amplifier stages and wide variety of general purpose functions for example amplification and switching purposes.
Package Type: TO-92
Transistor Type: NPN
Max Collector Current(IC): 0.8A or 800mA
Max Collector-Emitter Voltage (VCE): 45V
Max Collector-Base Voltage (VCB): 50V
Max Emitter-Base Voltage (VBE): 5V
Max Collector Dissipation (Pc): 625 Watt
Max Transition Frequency (fT): 100 MHz
Minimum & Maximum DC Current Gain (hFE): 100 – 630
Max Storage & Operating temperature Should be: -55 to +150 Centigrade
