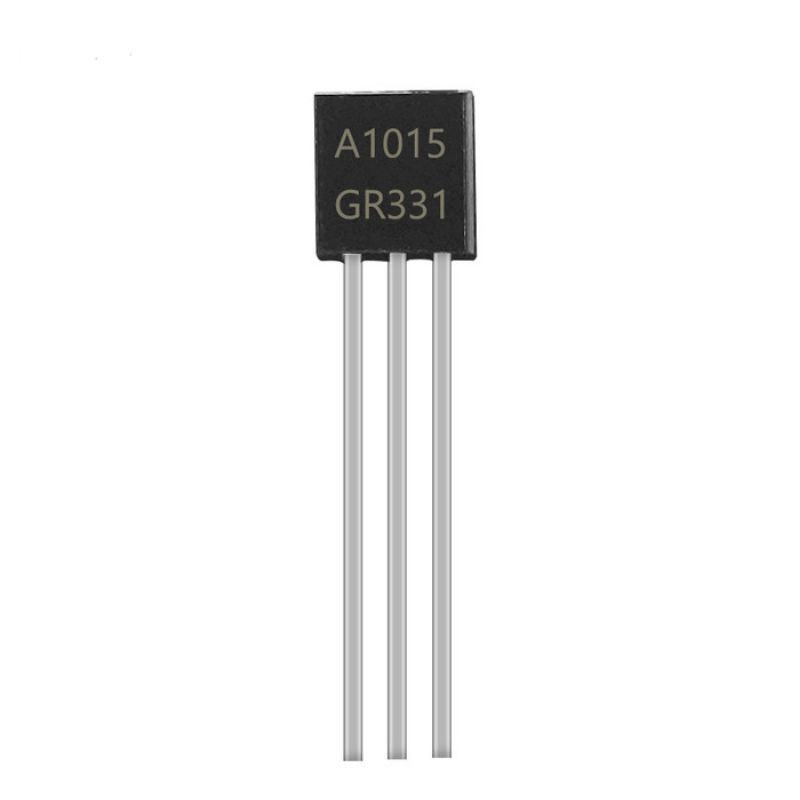

A1015 is a low cost good quality PNP transistor that is mainly designed to use as an audio amplifier or in audio amplification stages. The max collector to emitter voltage of the transistor is 50V therefore it can easily be used in circuits operating under 50V. For good performance it is recommended to use the transistor in circuits operating under 40V DC. The max collector dissipation of the transistor is 400mW and max DC current gain is 400 which makes this transistor a better device for small audio amplification.
Transistor Type
Power Dissipation: 0.4watts
High voltage and High current: Vceo = 50v and Ic = 150mA
Low Noise: 1dB
Case Material: molded plastic
Collector power dissipation: 400mW
DC current gain: 400
Collector Emitter and Collector Base breakdown voltage: 50Vdc
Base Emitter Saturation Voltage: 1.1Vdc
Collector Emitter Saturation Voltage: 0.3Vdc
Base Emitter voltage: 1.45Vdc
Complementary to 2SC1815
Operating Temperature and Storage Temperature: -55℃ to +150℃
