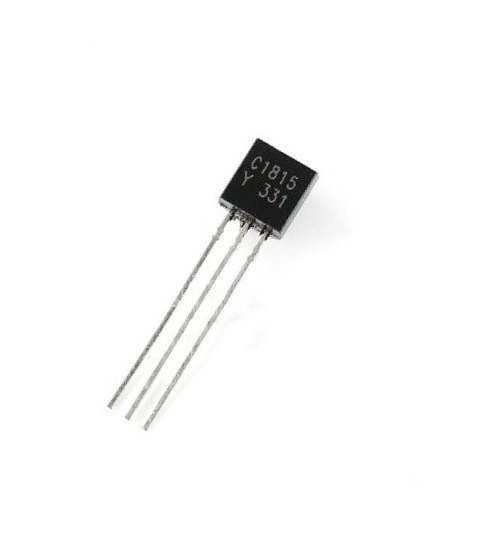

C1815 is a widely used transistor, it is used in commercial and educational projects. It is designed for audio frequency amplification and high frequency OSC. The collector-base voltage of the transistor is 50V therefore it can be easily used in circuits using below 50V DC. The collector current of the transistor is 150mA therefore it can drive any load below the 150mA limit.
Package Type: TO-92
Transistor Type: NPN
Max Collector Current(IC): 150mA
Max Collector-Emitter Voltage (VCE): 50V
Max Collector-Base Voltage (VCB): 60V
Max Emitter-Base Voltage (VEBO): 5V
Max Collector Dissipation (Pc): 400 miliWatt
Max Transition Frequency (fT): 80 MHz
Minimum & Maximum DC Current Gain (hFE): 70 – 700
Max Storage & Operating temperature Should Be: -55 to +150 Centigrade
