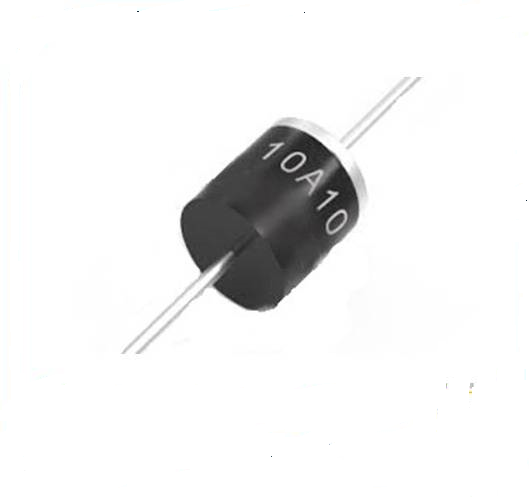

10A10 diode is a general-purpose silicon rectifier diode used to convert AC (Alternating Current) into DC (Direct Current) in power supplies, battery chargers, inverters, and other electronic circuits.
Maximum Average Forward Current (IF):10A
Peak Repetitive Reverse Voltage (VRRM):1000V
Forward Voltage Drop (VF):Approximately1.0–1.2V at rated current
Peak Surge Current (IFSM):Around **200–300 A** (short duration)
Package Type:Axial leaded:
Operating Temperature: Typically:-55°C to +150°C
